DMP 9 Technical Specs (Digital Media Player)

Swank Motion Pictures provides a Digital Media Player (DMP) for easy delivery of customized entertainment for your audience. The player broadcasts first run box-office movies and television programs along with your content. With a customized movie update process, the player runs during the times you specify to meet your entertainment needs.

CUSTOMIZE THE PROGRAM FOR YOUR AUDIENCE
In addition to the latest theatrical versions, Swank Motion Pictures offers special studio-edited titles to ensure your movies appeal to all ages. Movies can be done in multiple languages to accommodate a diverse customer base. Plus, you can choose the movies you want, or our experienced movie programmers can choose for you.

UPDATE YOUR MOVIES
You will receive a hard drive loaded with your new entertainment. This quick, secure download requires very little staff time. Refreshing your movies has never been easier!

EASY SET UP
Our state-of-the-art Digital Media Player (DMP) comes with clear concise instructions and requires less than 30 minutes to set up. In addition, the DMP runs automatically based on the schedule you create.

Hardware

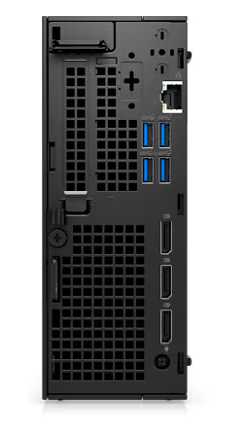

• Dell Precision Compact Workstation (standard)
• Optional chassis configurations are available in 1U rackmount models.
• 2TB storage capacity standard, additional storage is available upon request

Video Output

• Multiple resolutions and framerates supported including standard definition up to 1080i & high definition including 720x480 & 1920x1080i
• HDMI and HD-SDI video outputs with embedded audio
  • *Analog video output (component or composite) is not supported. To use analog video, you must use HD-SDI out and a customer-supplied HD-SDI to analog video converter. We recommend the following converter: Blackmagic Design Mini Converter SDI to Analog

Software Features

• Schedule manager allows you to load through simple drag-and-drop interface.
• Add your own custom videos to the player
• Export your schedules to CSV and iCal formats.
• Show bulletins to your viewers.
• Brand your player with your logo in the lower corner of the video output
• Automatic loading of new content provided by Swank (via USB hard drive)
• Receive upgrade – either over the Internet, or on Swank USB hard drives
• Schedule time zones changes without interrupting playback.

To access the user guide, please click here

Additional Features

• Includes technical support.
• Includes media player software updates.

Swank Motion Pictures DMP Player Technical Specifications

Model	Mini (standard)	Rackmount (available upon request)
Physical Parameters

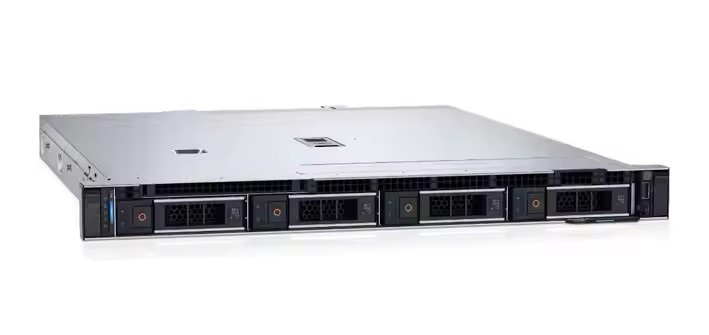

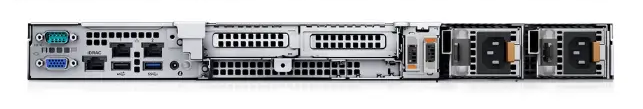

Form Factor	Workstation	1U rack server
Dimensions	7.48" H x 2.82" W x 7" D	1.69" H x 18.98" W x 23.04" D
Weight	4 lbs	28 lbs
Power Requirements
Power Supply	Single 240W, 110-240 VAC, 7.4/3.7 A, 50 HZ/60 HZ	Redundant 550W, 110-240 VAC, 7.4/3.7 A, 50 HZ/60 HZ
Storage
Standard	2 TB	2 TB
Optional	Additional storage can be added to accommodate large content libraries.	Additional storage can be added to accommodate large content libraries.
