DMP 9 - Quick Start Installation (Digital Media Player)

STEP 1:

Setup the player in the desired location.
*If you have the rack mount version of this system, please refer to the instructions at the bottom of this document.

STEP 2:

Connect your computer monitor or KVM system to the VGA port.

STEP 3:

Plug the power cord into the DMP and the other end into an electrical outlet. If your DMP has power redundancy, we recommend plugging them into separate power circuits.

STEP 4:

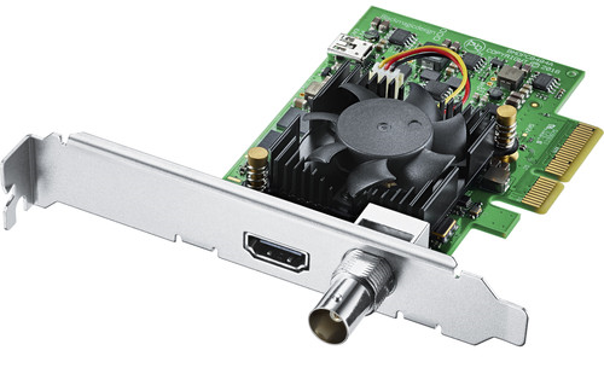

Connect the video/audio for Program Video Output (output to modulator, encoder, or broadcast system). There are two output options (HDMI and HD-SDI), the audio and video are handled by a single cable in either case.

Note: If you need an analog composite or component output connection, a customer-supplied adapter will have to be used. We can suggest the following adapters. These have been tested and are known working solutions.

• Blackmagic Design Mini Converter SDI to Analog

• You may also require BNC (male) to RCA (female) adapters for video output, and 1/4" (male) to RCA (female) adapters for audio output


STEP 5:

Press the power button on the front of the player. Wait 45-60 seconds for the DMP software to launch automatically.

STEP 6:

Adjust the date and time, if necessary.

1. Press Windows Key + R to open the Run box.
2. Type control and press enter.
3. The Control Panel will open.

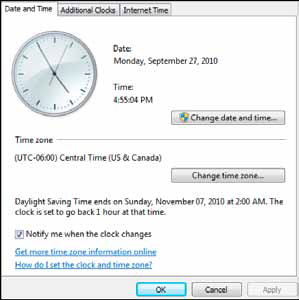

4. Select Date and Time
5. Click Change date and time
   •
6. Click on the appropriate date in the calendar. Click the up or down arrows to change the time or click on the numbers.
7. Click OK on the settings screen.
8. Click OK on the Date and Time screen.

STEP 7:

Adjust the time zone, if necessary. Cruise Line customers should leave the Time Zone set to “Central”.

1. Press Windows Key + R to open the Run box.
2. Type control and press enter.
3. The Control Panel will open.
4. Select Date and Time.
5. Click Change time zone.
   •
6. Click on the appropriate time zone in the drop down menu.
7. Click OK on the Time Zone settings screen.
8. Click OK on the Date and Time screen.

Note: The DMP does not automatically adjust to time zone changes. Manually adjusting the time
zone during use of the player may interfere with scheduled playback. Call Swank for assistance.

The Digital Media Player (DMP) is to be used only for tasks specified in the Agreement with Swank Motion Pictures, Inc.



*Rackmount Installation

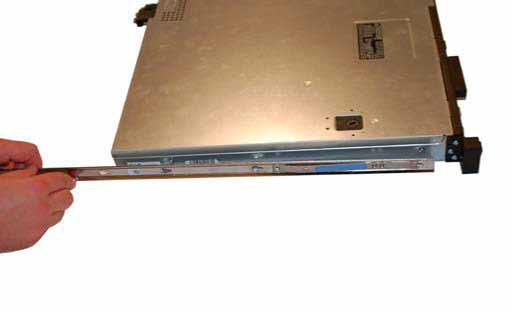

Attach the inner rails (provided in the shipment) to both sides of the Digital Media Player.

The blue section of the rails will be on the outside of the Digital Media Player and toward the front.

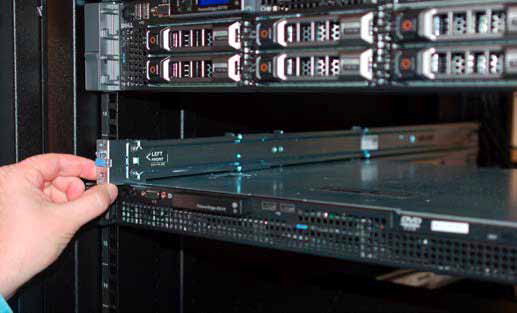

Attach the outer rails to your rack system. *Please refer to the instructions included with your system.

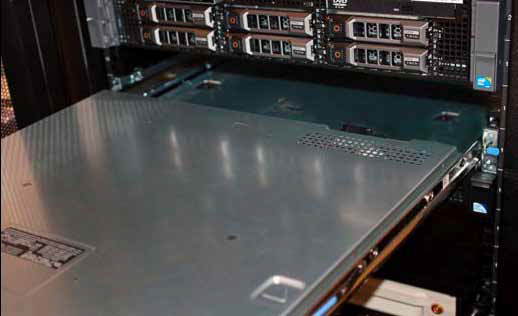

Slide the Digital Media Player onto the rails.

Please refer to the User Guide to load and schedule content.
