Cached License Server V2 - Changing IP Address/Network

1. Customer Login - From the Remote Console, login with the customer account.  (Password can be provided by the Swank Digital Support Team if needed.)
2. View Available Network Interfaces

   • sudo netplan status

3. Set IP and Subnet Mask(Replace IPs with the appropriate addresses for your environment)

   • sudo netplan set ethernets.ens32.addresses=[10.1.1.11/24]

4. Set Default Gateway - (Replace IPs with the appropriate addresses for your environment)

   • sudo netplan set ethernets.ens32.routes='[{"to":"default", "via":"10.1.1.1"}]'

5. Set DNS Server Addresses - (Replace IPs with the appropriate addresses for your environment)

   • sudo netplan set ethernets.ens32.nameservers.addresses='[10.1.1.126, 10.1.1.195]'

6. Apply Network Configuration Changes

   • sudo netplan apply

7. Manually Edit Netplan Config - Netplan can also be configured via a file editor, like vi or nano. More information can be obtained by consulting: Netplan | Canonical Netplan

   • sudo vi /etc/netplan/50-cloud-config.yaml

8. Confirming IP Address
   1. From another machine on the network, you can confirm the ip address by pinging the address selected.

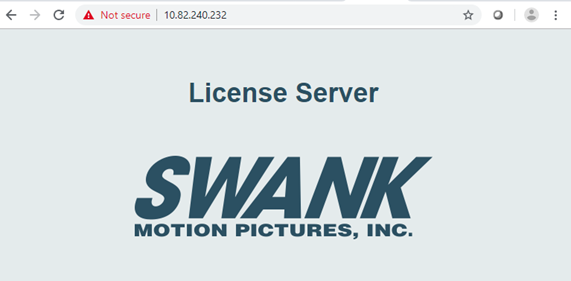

   2. You can also visit the Web UI of the server:

      • Ex: https://10.82.240.232
      •
      • Note: There is a security error in the browser due to the SSL certificate.  You will need to setup a swankmp.net subdomain in your local DNS so you can access the server without this warning.

        • Ex: ls001.swankmp.net A 10.82.240.232
