Chapter 5 - Configure Network Settings

Access Network Settings
At the bottom of the Settings screen, select Network Settings then press OK.

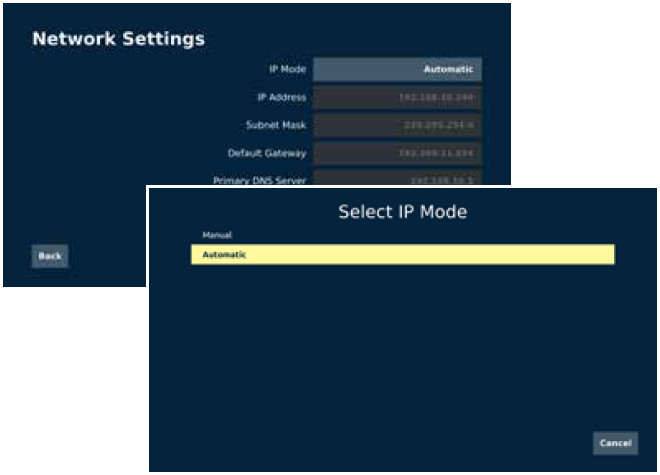

IP Mode (Automatic/Manual)
By default, Cinelink is set to Automatic IP Mode (DHCP). You may find that you need to adjust Cinelink™’s network settings manually if your network does not use DHCP, or if your network administrator requires specific settings. Press OK to switch from Automatic to Manual mode. Press OK again to apply the setting.

Manual IP Mode Settings
If manual IP setup is needed, work with your network administrator to set the proper values for IP address, Subnet Mask, Default Gateway, Primary DNS Server and Secondary DNS Server.

Note: Your server addresses will likely be different than those illustrated here.

Test Network Settings
Once you have entered all required values, test your settings by selecting Test at the bottom right corner of the screen. If successful, you will receive the message, Network settings successfully verified. Press OK to continue.

TCP/UDP Port Settings
Your network administrator will need to ensure that the following ports are open on your network in order for proper communication between Cinelink™ and Swank’s servers.

PORTS	IP ADDRESS / URL
TCP: 443	cinelink-apt.swankmp.net
TCP: 443	cinelinkrestapi.swankmp.com
TCP: 22, 33001 UDP: 33001-33100	cdntransfer.swankmp.com
